P82B96 - Dual bidirectional bus buffer

Datasheet Summary

Description

The P82B96 is a bipolar IC that creates a non-latching, bidirectional, logic interface between the normal I2C-bus and a range of other bus configurations.

It can interface I2Cbus logic signals to similar buses having different voltage and current levels.

Features

  • Bidirectional data transfer of I2C-bus signals.
  • Isolates capacitance allowing 400 pF on Sx/Sy side and 4000 pF on Tx/Ty side.
  • Tx/Ty outputs have 60 mA sink capability for driving low-impedance or high capacitive buses.
  • 400 kHz operation over at least 20 meters of wire (see AN10148).
  • Supply voltage range of 2 V to 15 V with I2C-bus logic levels on Sx/Sy side independent of supply voltage.
  • Splits I2C-bus signal into pairs of forward/reverse Tx.

📥 Download Datasheet

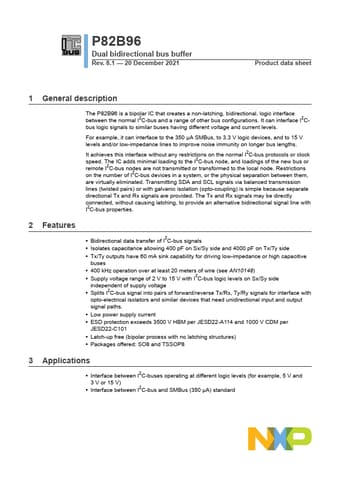

Datasheet preview – P82B96

Datasheet Details

Part number P82B96
Manufacturer NXP
File Size 434.21 KB
Description Dual bidirectional bus buffer
Datasheet download datasheet P82B96 Datasheet
Additional preview pages of the P82B96 datasheet.

📁 Similar Datasheet

  • P82B96 - Bus Buffer (Texas Instruments)
  • P82B715 - I2C bus extender (Texas Instruments)
  • P8202 - SMT CURRENT SENSE TRANSFORMERS (Pulse)
  • P8203 - SMT CURRENT SENSE TRANSFORMERS (Pulse)
  • P8204 - SMT CURRENT SENSE TRANSFORMERS (Pulse)
  • P8205 - SMT CURRENT SENSE TRANSFORMERS (Pulse)
  • P82050 - Asynchronous Communications Controller (Intel)
  • P82050 - Asynchronous Communications Controller (Intel)
  • P8206 - SMT CURRENT SENSE TRANSFORMERS (Pulse)
  • P8207 - SMT CURRENT SENSE TRANSFORMERS (Pulse)
Other Datasheets by NXP
  • P82B715 - I2C bus extender
  • P82C150 - CAN Serial Linked I/O device SLIO with digital and analog port functions
  • P82C150AFT - CAN Serial Linked I/O device SLIO with digital and analog port functions
  • P82C150AHT - CAN Serial Linked I/O device SLIO with digital and analog port functions
  • P82CF201 - Low power / low price dual fan manager

Full PDF Text Transcription

Click to expand full text
P82B96 Dual bidirectional bus buffer Rev. 8.1 — 20 December 2021 Product data sheet 1 General description The P82B96 is a bipolar IC that creates a non-latching, bidirectional, logic interface between the normal I2C-bus and a range of other bus configurations. It can interface I2Cbus logic signals to similar buses having different voltage and current levels. For example, it can interface to the 350 μA SMBus, to 3.3 V logic devices, and to 15 V levels and/or low-impedance lines to improve noise immunity on longer bus lengths. It achieves this interface without any restrictions on the normal I2C-bus protocols or clock speed. The IC adds minimal loading to the I2C-bus node, and loadings of the new bus or remote I2C-bus nodes are not transmitted or transformed to the local node.
