PBYL2525CTB Datasheet - NXP

PBYL2525CTB - Rectifier diodes Schottky barrier

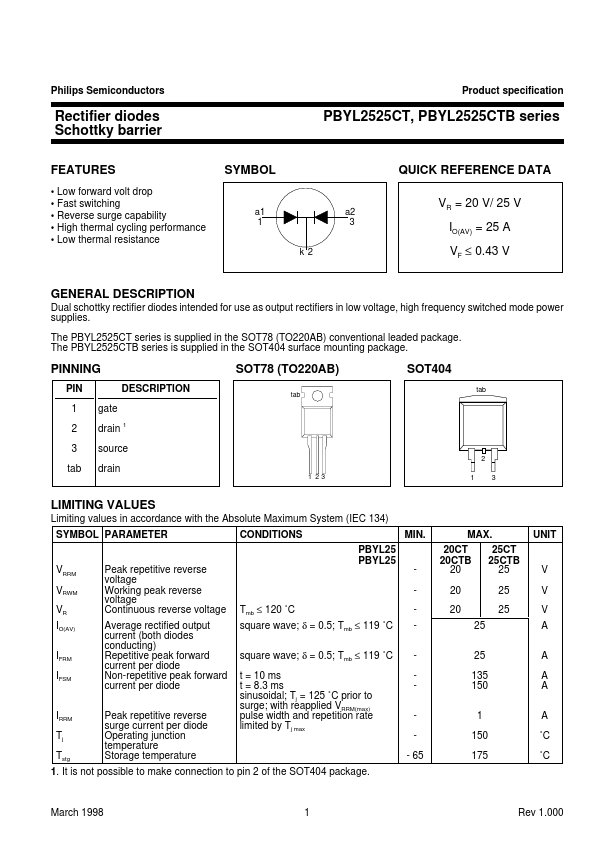

Dual schottky rectifier diodes intended for use as output rectifiers in low voltage, high frequency switched mode power supplies.

The PBYL2525CT series is supplied in the SOT78 (TO220AB) conventional leaded package.

The PBYL2525CTB series is supplied in the SOT404 surface mounting package.

PINNING

PBYL2525CTB Features

* Low forward volt drop

* Fast switching

* Reverse surge capability

* High thermal cycling performance

* Low thermal resistance PBYL2525CT, PBYL2525CTB series SYMBOL QUICK REFERENCE DATA VR = 20 V/ 25 V IO(AV) = 25 A VF ≤ 0.43 V a1 1 k 2 a2 3 GENERAL DES
