PBYR2540CTB

Rectifier diodes Schottky barrier

NXP

PBYR2540CTB Features

* Low forward volt drop

* Fast switching

* Reverse surge capability

* High thermal cycling performance

* Low thermal resistance PBYR2545CT, PBYR2545CTB series SYMBOL QUICK REFERENCE DATA VR = 40 V/ 45 V a1 1 k 2 a2 3 IO(AV) = 30 A VF ≤ 0.62 V GENERAL DE

PBYR2540CTB General Description

Dual, common cathode schottky rectifier diodes in a conventional leaded plastic package and a surface mounting plastic package. Intended for use as output rectifiers in low voltage, high frequency switched mode power supplies. The PBYR2545CT series is supplied in the SOT78 conventional leaded packag.

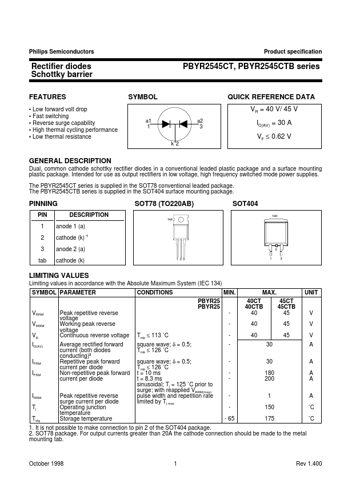

PBYR2540CTB Datasheet (42.98 KB)
