PBYR2545CTF Datasheet - NXP

PBYR2545CTF Rectifier diodes Schottky barrier

Dual, common cathode schottky rectifier diodes in a plastic envelope with electrically isolated mounting tab. Intended for use as output rectifiers in low voltage, high frequency switched mode power supplies. The PBYR2545CTF is supplied in the SOT186 package. The PBYR2545CTX is supplied in the SOT18.

PBYR2545CTF_PhilipsSemiconductors.pdf

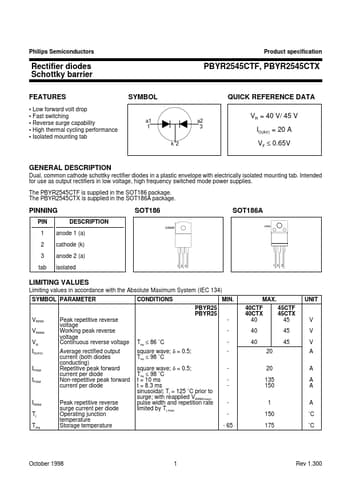

Preview of PBYR2545CTF PDF
PBYR2545CTF Datasheet Preview Page 2 PBYR2545CTF Datasheet Preview Page 3

Datasheet Details

Part number:

PBYR2545CTF

Manufacturer:

NXP ↗

File Size:

43.28 KB

Description:

Rectifier diodes schottky barrier.
