PCA9922 - 8-channel Constant Current LED

PCA9922 Description

PCA9922 8-channel constant current LED driver with output error detection Rev.2 * 6 April 2011 Product data sheet 1.General .
The PCA9922 is an 8-channel constant current LED driver designed for LED signage and display applications.

PCA9922 Features

* 25 MHz serial interface
* 3.3 V to 5.5 V operation
* 8 LED low side constant current outputs
* Global control for the 8 LED outputs variable between 15 mA to 60 mA
* 15 mA to 60 mA maximum current for all 8 output channels set by an external resistor

PCA9922 Applications

* The output current is adjustable from 15 mA to 60 mA controlled by an external series resistor. The outputs are controlled via a serial interface with a maximum clock frequency of 25 MHz to allow for the system requirement of high volume data transmission. Each of the 8 channel outputs has edge rat

📥 Download Datasheet

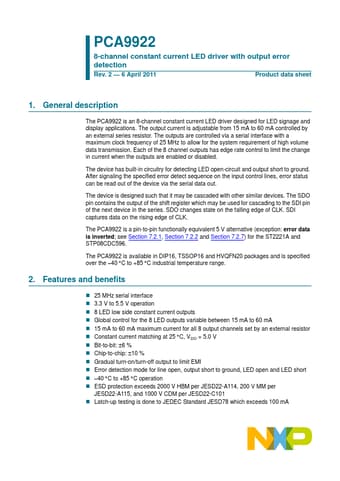

Preview of PCA9922 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PCA9922
Manufacturer
NXP ↗
File Size
245.25 KB
Datasheet
PCA9922_NXP.pdf
Description
8-channel Constant Current LED
