PCA9955-Q900, PCA9952-Q900, 16-channel constant current LED driver

PCA9952/Q900; PCA9955/Q900 16-channel Fm+ I2C-bus 57 mA constant current LED driver, AEC-Q100 compliant Rev.1 * 26 April 2013 Product data.
The PCA9952/Q900 and PCA9955/Q900 are I2C-bus controlled 16-channel constant current LED driver optimized for dimming and blinking 57 mA Red/Green/Blu.

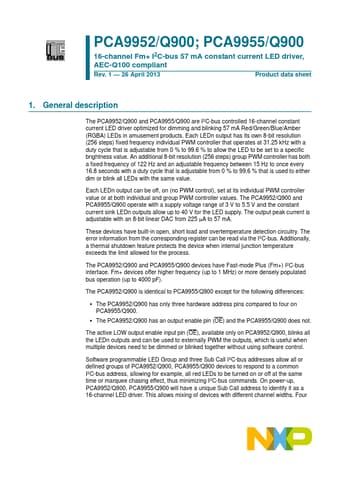

datasheet Preview Page 1 from Datasheet4u.com

PCA9952-Q900-NXP.pdf

PCA9955-Q900 Datasheet Preview — This datasheet PDF includes multiple part numbers: PCA9955-Q900, PCA9952-Q900. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PCA9955-Q900, PCA9952-Q900

Manufacturer:

NXP ↗

File Size:

472.21 KB

Description:

16-channel constant current LED driver

Note:

This datasheet PDF includes multiple part numbers: PCA9955-Q900, PCA9952-Q900.
Please refer to the document for exact specifications by model.

Features

* Compliant with AEC-Q100
* 16 LED drivers. Each output programmable at:
* Off
* On
* Programmable LED brightness
* Programmable group dimming/blinking mixed with individual LED brightness
* Programmable LEDn output enable delay to reduce EMI and surge currents
* 16 c

Applications

* Automotive lighting
* Single-string LED (white, RGB, or RGBA) display or backlight
