PCA9957 Datasheet, Driver, NXP

PCA9957 Features

  • Driver
  • 24 LED drivers. Each output programmable at:
  • Off
  • On
  • 8 bits programmable LED brightness
  • 8 bits programmable group dimming/blinking mixed

PDF File Details

Part number:

PCA9957

Manufacturer:

NXP ↗

File Size:

753.14kb

Download:

📄 Datasheet

Description:

24-channel spi serial bus 32ma/5.5v constant current led driver. The PCA9957 is a daisy-chain SPI-compatible 4-wire serial bus controlled 24-channel constant current LED driver optimized for dimming

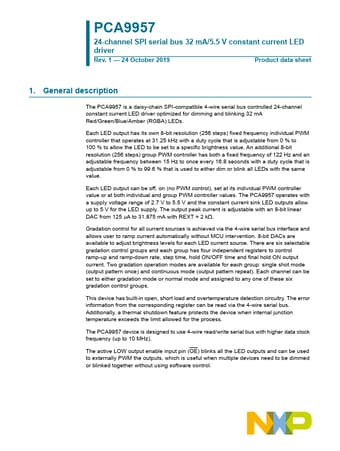

Datasheet Preview: PCA9957 📥 Download PDF (753.14kb)
Page 2 of PCA9957 Page 3 of PCA9957
