PESD5V0X1UAB Ultra low capacitance unidirectional ESD protection diode

Ultra low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode in a SOD523 (SC-79) ultra small and flat lead Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients. The combination of extremely low capa.

PESD5V0X1UAB Features

* ESD protection of one line

* Ultra low diode capacitance Cd = 1.55 pF

* Ultra low clamping voltage: VCL = 9 V

* Ultra low leakage current: IRM = 1 nA

* ESD protection up to 15 kV

* IEC 61000-4-2; level 4 (ESD)

* IEC 61000-4-5 (surge); IPP = 2 A

* AEC-Q101 qualified

PESD5V0X1UAB Datasheet (102.82 KB)

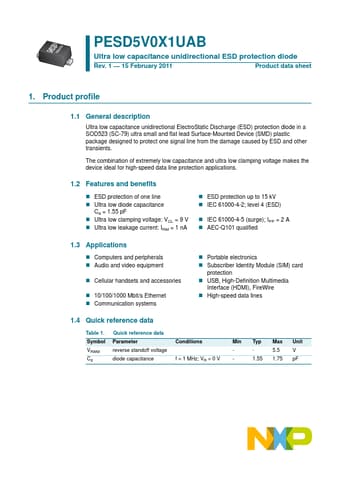

PESD5V0X1UAB Datasheet Preview — Preview of PESD5V0X1UAB PDF
