PESD5V0X1ULD - Ultra low capacitance unidirectional ESD protection diode

nexperia

📥 Download Datasheet

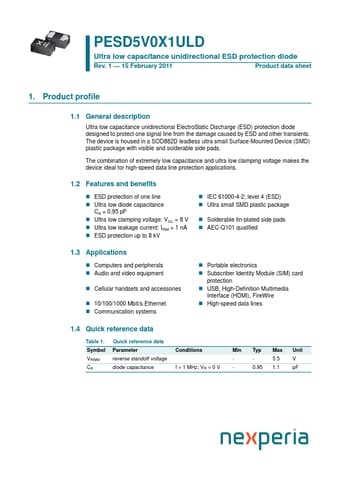

PESD5V0X1ULD Datasheet Preview — Preview of PESD5V0X1ULD PDF

Datasheet Details

Part number: PESD5V0X1ULD
Manufacturer: nexperia ↗
File Size: 668.02 KB
Datasheet: PESD5V0X1ULD-nexperia.pdf
Description: Ultra low capacitance unidirectional ESD protection diode

PESD5V0X1ULD Product details

Description

Ultra low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients..

Features

ESD protection of one line.
Ultra low diode capacitance Cd = 0.95 pF.
Ultra low clamping voltage: VCL = 8 V.
Ultra low leakage current: IRM = 1 nA.
ESD protection up to 8 kV.
IEC 61000-4-2; level 4 (ESD).
Ultra small SMD plastic package.
Solderable tin-plated side pads.
AEC-Q101 qualified 1.3.
