PH2222A - NPN switching transistor

Datasheet Summary

Description

NPN switching transistor in a TO-92; SOT54 plastic package.

PNP complement: PH2907A.

Simplified outline (TO-92; SOT54) and symbol.

Features

  • High current (max. 600 mA).
  • Low voltage (max. 40 V).

📥 Download Datasheet

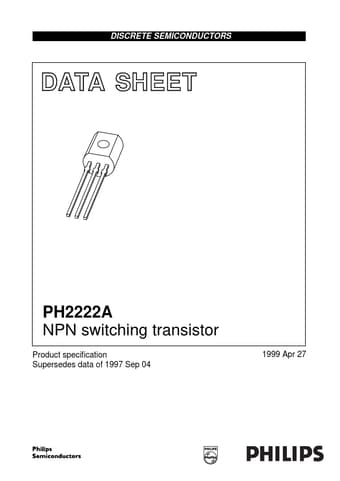

Datasheet preview – PH2222A

Datasheet Details

Part number PH2222A
Manufacturer NXP
File Size 45.60 KB
Description NPN switching transistor
Datasheet download datasheet PH2222A Datasheet
