PH2323-3 - CW Power Transistor/ 3.5W 2.3 GHz

Datasheet Summary

Features

NPN Silicon Microwave Power Transistor Common Base Configuration Class C Operation Interdigitated Geometry Diffused Emitter Ballasting Resistors Gold Metalization System Hermetic MetalCeramic Package 3.5W PH2323-3 v2.00 Absolute Maximum Ratings at 25°C Parameter Symbol Rating Units Electrical Characteristics Parameter Collector-Emitter Collector-Emitter Input Power Power Gain CollectorEfficiency Input Return Loss Load Mismatch Tolerance Breakdown Voltage Leakage Current at 25°C 1 Symbol 1 Mi.

Tyco Electronics

📥 Download Datasheet

Datasheet Details

Part number	PH2323-3
Manufacturer	Tyco Electronics
File Size	114.39 KB
Description	CW Power Transistor/ 3.5W 2.3 GHz
Datasheet	PH2323-3 Datasheet

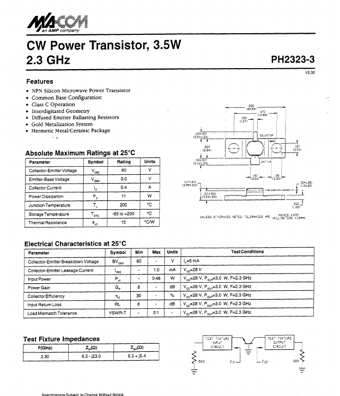

Additional preview pages of the PH2323-3 datasheet.

📁 Similar Datasheet

PH2369 - NPN switching transistor (NXP)
PH2369 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
PH2369 - NPN Transistor (LGE)
PH2369M - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
PH20100S - N-Channel MOSFET (NXP Semiconductors)
PH201A - PHOTO DETECTOR (NEC)
PH2222A - NPN switching transistor (NXP)
PH2226-110M - Radar Pulsed Power Transistor (MA-COM)
PH2226-50M - Radar Pulsed Power Transistor (MA-COM)
PH240320T-037-L09Q - LCD Module (POWERTIP)

Other Datasheets by Tyco Electronics

PH2323-1 - CW Power Transistor/ 1W 2.3 GHz
PH2323-14 - CW Power Transistor/14W 2.3 GHz
PH2323-5 - CW Power Transistor/ 5W /2.3 GHz
PH2729-150M - Radar Pulsed Power Transistor-150 Watts 2.7-2.9 GHz/ 100ms Pulse/ 10% Duty
PH2729-25M - RADAR PULSED POWER TRANSISTOR 25 WATTS/ 2.70-2.90 GHz/ 100ms PULSE/ 10% DUTY
PH2729-65M - Radar Pulsed Power Transistor/ 65W/ loops Pulse/ 10% Duty 2.7 - 2.9 GHz
PH2729-8SM - Radar Pulsed Power Transistor/ 8.5W/ loops Pulse/ 10% Duty 2.7 - 2.9 GHz
PH2729430M - Radar Pulsed Power Transistor/ 13OW/ IOOps Pulse/ 10% Duty 2.7 - 2.9 GHz

Full PDF Text Transcription

Click to expand full text

an AMP cormany CW Power Transistor, 2.3 GHz Features NPN Silicon Microwave Power Transistor Common Base Configuration Class C Operation Interdigitated Geometry Diffused Emitter Ballasting Resistors Gold Metalization System Hermetic MetalCeramic Package 3.5W PH2323-3 v2.00 Absolute Maximum Ratings at 25°C Parameter Symbol Rating Units Electrical Characteristics Parameter Collector-Emitter Collector-Emitter Input Power Power Gain CollectorEfficiency Input Return Loss Load Mismatch Tolerance Breakdown Voltage Leakage Current at 25°C 1 Symbol 1 Min 1 Max 1 Units 1 Test Conditions BV,,, ICES PIN GP ‘Ic RL 60 1 1.0 1 V mA w I,=5 mA V,,=28 v V,,=28 8 30 0.48 - V, PoUT=3.0W, F=2.3 GHz -I V, P,,?3.0 V, P,LI.F3.0 dB % 1 V,,=28 1 V,,=28 W, F=2.3 GHz W, F=2.3 GHz W, F=2.
