PH2729-25M - RADAR PULSED POWER TRANSISTOR 25 WATTS/ 2.70-2.90 GHz/ 100ms PULSE/ 10% DUTY

Datasheet Summary

Features

∗ NPN Silicon Microwave Power Transistor ∗ Common Base Configuration ∗ Broadband Class C Operation ∗ High Efficiency Interdigitated Geometry ∗ Diffused Emitter Ballasting Resistors ∗ Gold Metalization System ∗ Internal Input and Output Impedance Matching ∗ Hermetic Metal/Ceramic Package.

Tyco Electronics

📥 Download Datasheet

Datasheet Details

Part number	PH2729-25M
Manufacturer	Tyco Electronics
File Size	99.82 KB
Description	RADAR PULSED POWER TRANSISTOR 25 WATTS/ 2.70-2.90 GHz/ 100ms PULSE/ 10% DUTY
Datasheet	PH2729-25M Datasheet

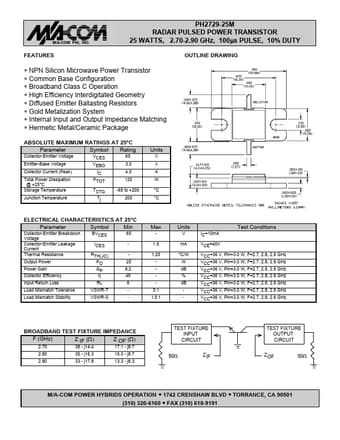

Additional preview pages of the PH2729-25M datasheet.

📁 Similar Datasheet

PH2729-25M - Radar Pulsed Power Transistor (MA-COM)
PH2729-110M - Radar Pulsed Power Transistor (MA-COM)
PH2729-130M - Radar Pulsed Power Transistor (MA-COM)
PH2729-65M - Radar Pulsed Power Transistor (MA-COM)
PH270F2 - FRD MODULE (ETC)
PH270F6 - FRD MODULE 270A/600V/trr:170nsec (Nihon Inter Electronics Corporation)
PH2731-20M - Radar Pulsed Power Transistor (MA-COM)
PH2731-5M - Radar Pulsed Power Transistor (MA-COM)
PH2731-75L - Radar Pulsed Power Transistor (MA-COM)
PH20100S - N-Channel MOSFET (NXP Semiconductors)

Other Datasheets by Tyco Electronics

PH2729-150M - Radar Pulsed Power Transistor-150 Watts 2.7-2.9 GHz/ 100ms Pulse/ 10% Duty
PH2729-65M - Radar Pulsed Power Transistor/ 65W/ loops Pulse/ 10% Duty 2.7 - 2.9 GHz
PH2729-8SM - Radar Pulsed Power Transistor/ 8.5W/ loops Pulse/ 10% Duty 2.7 - 2.9 GHz
PH2729430M - Radar Pulsed Power Transistor/ 13OW/ IOOps Pulse/ 10% Duty 2.7 - 2.9 GHz
PH2731-20M - Radar Pulsed Power Transistor/ 2OW/ loops Pulse/ 10% Duty 2.7 - 3.1 GHz
PH2731-5M - Radar Pulsed Power Transistor/ 5W/ IOOps Pulse/ 10% Duty
PH2323-1 - CW Power Transistor/ 1W 2.3 GHz
PH2323-14 - CW Power Transistor/14W 2.3 GHz

Full PDF Text Transcription

Click to expand full text

M/A-COM PHI, INC. PH2729-25M RADAR PULSED POWER TRANSISTOR 25 WATTS, 2.70-2.90 GHz, 100µs PULSE, 10% DUTY OUTLINE DRAWING FEATURES ∗ NPN Silicon Microwave Power Transistor ∗ Common Base Configuration ∗ Broadband Class C Operation ∗ High Efficiency Interdigitated Geometry ∗ Diffused Emitter Ballasting Resistors ∗ Gold Metalization System ∗ Internal Input and Output Impedance Matching ∗ Hermetic Metal/Ceramic Package ABSOLUTE MAXIMUM RATINGS AT 25°C Parameter Symbol Rating Collector-Emitter Voltage Emitter-Base Voltage Collector Current (Peak) Total Power Dissipation @ +25°C Storage Temperature Junction Temperature VCES VEBO IC PTOT TSTG Tj 65 3.0 4.

Published: Mar 22, 2005 |
