PH2729-150M

Radar Pulsed Power Transistor-150 Watts 2.7-2.9 GHz/ 100ms Pulse/ 10% Duty

PH2729-150M Features

* NPN Silicon Microwave Power Transistor Common Base Configuration Broadband Class C Operation High Efficiency Interdigitated Geometry Diffused Emitter Ballasting Resistors Gold Metallization System Internal Input and Outp

PH2729-150M General Description

M/A-COM’s PH2729-150M is a silicon bipolar NPN transistor specifically designed for use in high efficiency, common base, Class C microwave power amplifiers. It is ideally suited for SBand radar and pulsed power applications where the highest gain and saturated power are required. The flanged ceramic.

PH2729-150M Datasheet (79.51 KB)

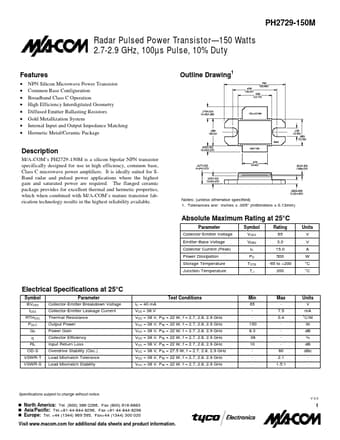

Preview of PH2729-150M PDF

Datasheet Details

Part number:

PH2729-150M

Manufacturer:

Tyco Electronics

File Size:

79.51 KB

Description:

Radar pulsed power transistor-150 watts 2.7-2.9 ghz/ 100ms pulse/ 10% duty.
