PHX6NA60E Datasheet - NXP

PHX6NA60E PowerMOS transistors Low capacitance Avalanche energy rated

N-channel, enhancement mode field-effect power transistor, intended for use in off-line switched mode power supplies, T.V. and computer monitor power supplies, d.c. to d.c. converters, motor control circuits and general purpose switching applications. The PHX6NA60E is supplied in the SOT186A full pa.

PHX6NA60E Features

* Repetitive Avalanche Rated

* Fast switching

* Low feedback capacitance

* Stable off-state characteristics

* High thermal cycling performance

* Low thermal resistance PHX6NA60E SYMBOL d QUICK REFERENCE DATA VDSS = 600 V g ID = 3.9 A RDS(ON) ≤ 1.2

PHX6NA60E_PhilipsSemiconductors.pdf

Preview of PHX6NA60E PDF

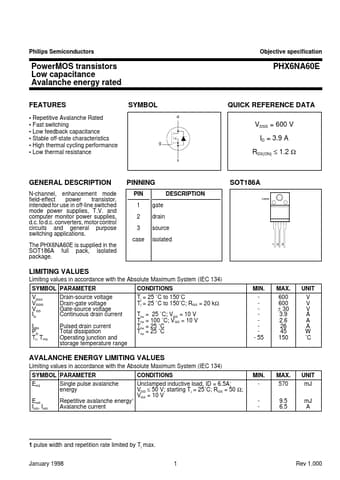

PHX6NA60E Datasheet Preview Page 2 PHX6NA60E Datasheet Preview Page 3

Datasheet Details

Part number:

PHX6NA60E

Manufacturer:

NXP ↗

File Size:

25.62 KB

Description:

Powermos transistors low capacitance avalanche energy rated.
