PZU2.7B, PZU2.4B, Single Zener diodes

PZUxB series Single Zener diodes in a SOD323F package Rev.02 * 15 November 2009 Product data sheet 1.Product profile 1.1 General descript.
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface Mounted Device (SMD) plastic package. Total.

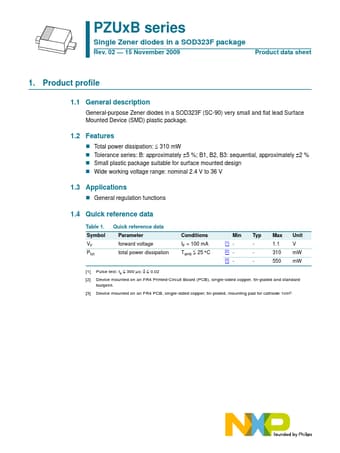

datasheet Preview Page 1 from Datasheet4u.com

PZU2.4B-NXP.pdf

PZU2.7B Datasheet Preview — This datasheet PDF includes multiple part numbers: PZU2.7B, PZU2.4B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PZU2.7B, PZU2.4B

Manufacturer:

NXP ↗

File Size:

100.20 KB

Description:

Single Zener diodes

Note:

This datasheet PDF includes multiple part numbers: PZU2.7B, PZU2.4B.
Please refer to the document for exact specifications by model.

Features

* Total power dissipation: ≤ 310 mW
* Tolerance series: B: approximately ±5 %; B1, B2, B3: sequential, approximately ±2 %
* Small plastic package suitable for surface mounted design

Applications

* General regulation functions 1.4 Quick reference data Table 1. Symbol VF Ptot Quick reference data Parameter forward voltage total power dissipation Conditions IF = 100 mA Tamb ≤ 25 °C Min Typ Max Unit [1] - - 1.1 V [2] - - 310 mW [3] - - 550 mW [1] Pulse test: tp ≤ 300 μs; δ ≤ 0.02
