PZU2.4BA-Q, Single Zener diodes

PZUxBA-Q series Single Zener diodes Rev.1 * 10 August 2022 Product data sheet 1.General .
General-purpose Zener diodes in a SOD323 (SC-76) very small Surface-Mounted Device (SMD) plastic package. Non-repet.

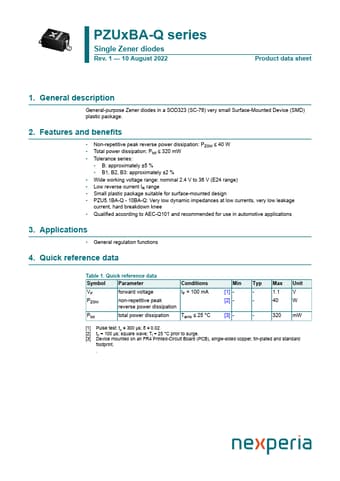

datasheet Preview Page 1 from Datasheet4u.com

PZU2.4BA-Q-nexperia.pdf

PZU2.4BA-Q Datasheet Preview — Preview of PZU2.4BA-Q PDF

Datasheet Details

Part number:

PZU2.4BA-Q

Manufacturer:

nexperia ↗

File Size:

276.85 KB

Description:

Single Zener diodes

Features

* Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W
* Total power dissipation: Ptot ≤ 320 mW
* Tolerance series:
* B: approximately ±5 %
* B1, B2, B3: approximately ±2 %
* Wide working voltage range: nominal 2.4 V to 36 V (E24 range)

Applications

* 3. Applications
* General regulation functions 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions VF forward voltage IF = 100 mA PZSM non-repetitive peak reverse power dissipation Ptot total power dissipation Tamb ≤ 25 °C Min Typ Max Unit [1] - - 1
