PZU20, PZU2.4 - Single Zener diodes

nexperia

Datasheet Details

Part number	PZU20, PZU2.4
Manufacturer	nexperia ↗
File Size	184.03 KB
Description	Single Zener diodes

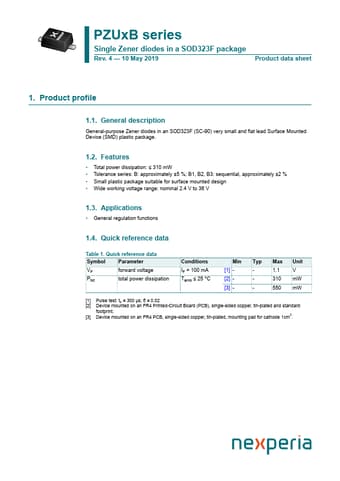

Datasheet	PZU2.4-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: PZU20, PZU2.4. Please refer to the document for exact specifications by model.

General-purpose Zener diodes in an SOD323F (SC-90) very small and flat lead Surface Mounted Device (SMD) plastic package.

Total power dissipation: ≤ 310 mW.
Tolerance series: B: approximately ±5 %; B1, B2, B3: sequential, approximately ±2 %.
Small plastic package suitable for surface mounted design.
Wide working voltage range: nominal 2.4 V to 36 V 1.3.
