PZU20DB2, PZU2.7DB2 Datasheet - NXP

PZU20DB2, PZU2.7DB2, Dual Zener diodes

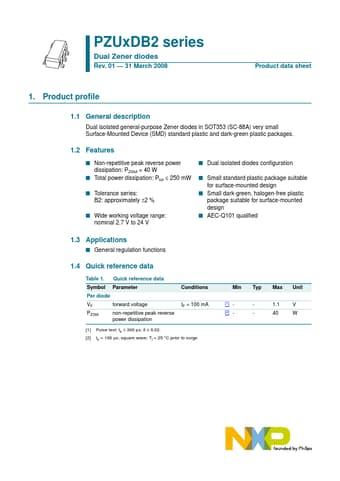

PZUxDB2 series Dual Zener diodes Rev.01 * 31 March 2008 Product data sheet 1.Product proﬁle 1.1 General .
Dual isolated general-purpose Zener diodes in SOT353 (SC-88A) very small Surface-Mounted Device (SMD) standard plastic and dark-green plastic packages.

datasheet Preview Page 1 from Datasheet4u.com

PZU2.7DB2-NXP.pdf

PZU20DB2 Datasheet Preview — This datasheet PDF includes multiple part numbers: PZU20DB2, PZU2.7DB2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PZU20DB2, PZU2.7DB2

Manufacturer:

NXP ↗

File Size:

105.64 KB

Description:

Dual Zener diodes

Note:

This datasheet PDF includes multiple part numbers: PZU20DB2, PZU2.7DB2.
Please refer to the document for exact specifications by model.

Features

* I Non-repetitive peak reverse power dissipation: PZSM = 40 W I Total power dissipation: Ptot ≤ 250 mW I Tolerance series: B2: approximately ±2 % I Wide working voltage range: nominal 2.7 V to 24 V I Dual isolated diodes conﬁguration I Small standard plastic package suitable for surface-mounted des

Applications

* I General regulation functions 1.4 Quick reference data Table 1. Quick reference data Symbol Parameter Per diode VF PZSM forward voltage non-repetitive peak reverse power dissipation Conditions IF = 100 mA [1] Pulse test: tp ≤ 300 µs; δ ≤ 0.02. [2] tp = 100 µs; square wave; Tj = 25 °C prior
