PZU22B2L Datasheet, Diodes, NXP

PZU22B2L Features

• Diodes I Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W I Total power dissipation: Ptot ≤ 250 mW I Tolerance series: B: approximately ±5 %; B2: approximately ±2 % I Wide working v

PDF File Details

Part number:

PZU22B2L

Manufacturer:

NXP ↗

File Size:

113.75kb

Download:

📄 Datasheet

Description:

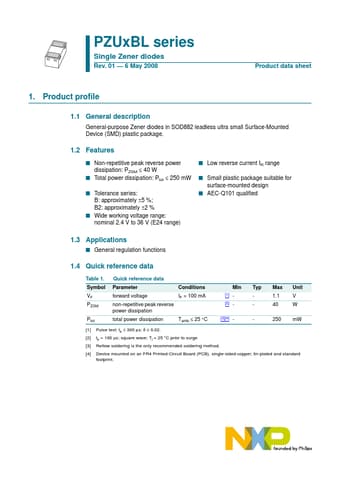

Single zener diodes. General-purpose Zener diodes in SOD882 leadless ultra small Surface-Mounted Device (SMD) plastic package. 1.2 Features I Non-repeti

PZU22B2L Application

• Applications I General regulation functions 1.4 Quick reference data Table 1. Symbol VF PZSM Ptot Quick reference data Parameter Conditions fo
