PZU22BA-Q, PZU2.4BA-Q - Single Zener diodes

nexperia

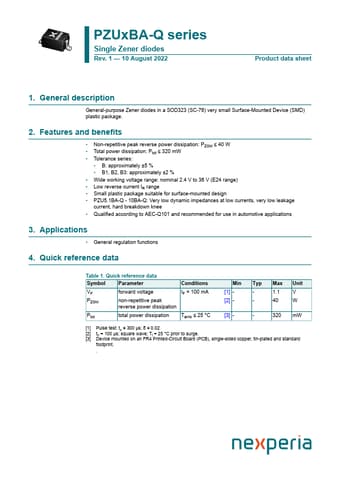

📥 Download Datasheet

PZU22BA-Q Datasheet Preview — This datasheet PDF includes multiple part numbers: PZU22BA-Q, PZU2.4BA-Q. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PZU22BA-Q, PZU2.4BA-Q
Manufacturer	nexperia ↗
File Size	276.85 KB
Description	Single Zener diodes
Datasheet	PZU2.4BA-Q-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: PZU22BA-Q, PZU2.4BA-Q. Please refer to the document for exact specifications by model.

PZU22BA-Q Product details

Description

General-purpose Zener diodes in a SOD323 (SC-76) very small Surface-Mounted Device (SMD) plastic package.

Features

Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W.
Total power dissipation: Ptot ≤ 320 mW.
Tolerance series:.
B: approximately ±5 %.
B1, B2, B3: approximately ±2 %.
Wide working voltage range: nominal 2.4 V to 36 V (E24 range).
Low reverse current IR range.
Small plastic package suitable for surface-mounted design.
PZU5.1BA-Q - 10BA-Q: Very low dynamic impedances at low currents, very low leakage current,.
