PZU7.5, PZUxB Single Zener diodes

NXP

Description

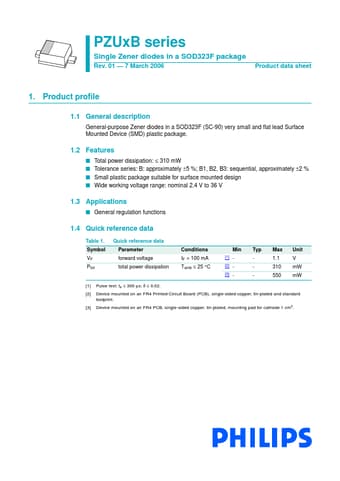

www.DataSheet4U.com PZUxB series Single Zener diodes in a SOD323F package Rev.01 * 7 March 2006 Product data sheet 1.Product proﬁle 1.1 .
General-purpose Zener diodes in a SOD323F (SC-90) very small and ﬂat lead Surface Mounted Device (SMD) plastic package.

📥 Download Datasheet

PZU7.5 Datasheet Preview — This datasheet PDF includes multiple part numbers: PZU7.5, PZUxB. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: PZU7.5, PZUxB
Manufacturer: NXP ↗
File Size: 90.53 KB
Datasheet: PZUxB_PhilipsSemiconductors.pdf
Description: Single Zener diodes
Note: This datasheet PDF includes multiple part numbers: PZU7.5, PZUxB.
Please refer to the document for exact specifications by model.

Applications

* I General regulation functions 1.4 Quick reference data Table 1. Symbol VF Ptot Quick reference data Parameter forward voltage total power dissipation Conditions IF = 100 mA Tamb ≤ 25 °C Min Typ Max Unit [1] - - 1.1 V [2] - - 310 mW [3] - - 550 mW [1] Pulse test: tp ≤ 300 µs; δ ≤ 0.02. [2] Dev
