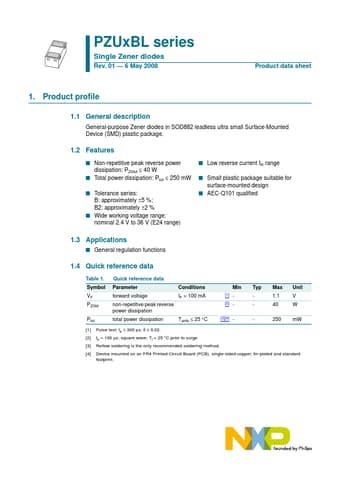

PZUxBL series Single Zener diodes Rev.01 * 6 May 2008 Product data sheet 1.Product proﬁle 1.1 General .
General-purpose Zener diodes in SOD882 leadless ultra small Surface-Mounted Device (SMD) plastic package.

datasheet Preview Page 1 from Datasheet4u.com

PZU2.4BL-NXP.pdf

PZU7.5BL Datasheet Preview — This datasheet PDF includes multiple part numbers: PZU7.5BL, PZU2.4BL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PZU7.5BL, PZU2.4BL

Manufacturer:

NXP ↗

File Size:

113.75 KB

Description:

Single Zener diodes

Note:

This datasheet PDF includes multiple part numbers: PZU7.5BL, PZU2.4BL.
Please refer to the document for exact specifications by model.

Features

* I Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W I Total power dissipation: Ptot ≤ 250 mW I Tolerance series: B: approximately ±5 %; B2: approximately ±2 % I Wide working voltage range: nominal 2.4 V to 36 V (E24 range) I Low reverse current IR range I Small plastic package suitable fo

Applications

* I General regulation functions 1.4 Quick reference data Table 1. Symbol VF PZSM Ptot Quick reference data Parameter Conditions forward voltage IF = 100 mA non-repetitive peak reverse power dissipation total power dissipation Tamb ≤ 25 °C Min Typ Max Unit [1] - - 1.1 V [2] - - 40 W [3][4]
