PZU9.1B Datasheet, Diodes, NXP

PZU9.1B Features

• Diodes
• Total power dissipation: ≤ 310 mW
• Tolerance series: B: approximately ±5 %; B1, B2, B3: sequential, approximately ±2 %
• Small plastic package suitable for su

PDF File Details

Part number:

PZU9.1B

Manufacturer:

NXP ↗

File Size:

100.20kb

Download:

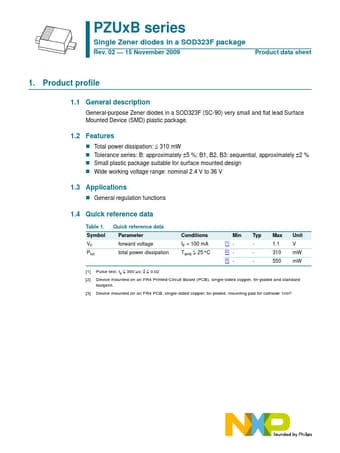

📄 Datasheet

Description:

Single zener diodes. General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface Mounted Device (SMD) plastic package. 1.2 Feature

PZU9.1B Application

• Applications
• General regulation functions 1.4 Quick reference data Table 1. Symbol VF Ptot Quick reference data Parameter forward volta
