PZU9.1DB2, PZU2.7DB2 - Dual Zener diodes

NXP

📥 Download Datasheet

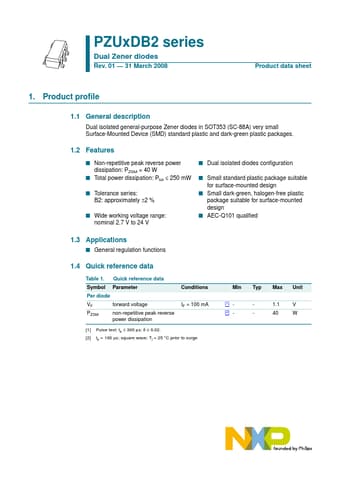

PZU9.1DB2 Datasheet Preview — This datasheet PDF includes multiple part numbers: PZU9.1DB2, PZU2.7DB2. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PZU9.1DB2, PZU2.7DB2
Manufacturer	NXP ↗
File Size	105.64 KB
Description	Dual Zener diodes
Datasheet	PZU2.7DB2-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: PZU9.1DB2, PZU2.7DB2. Please refer to the document for exact specifications by model.

PZU9.1DB2 Product details

Description

Dual isolated general-purpose Zener diodes in SOT353 (SC-88A) very small Surface-Mounted Device (SMD) standard plastic and dark-green plastic packages.

Features

I Non-repetitive peak reverse power dissipation: PZSM = 40 W I Total power dissipation: Ptot ≤ 250 mW I Tolerance series: B2: approximately ±2 % I Wide working voltage range: nominal 2.7 V to 24 V I Dual isolated diodes conﬁguration I Small standard plastic package suitable for surface-mounted design I Small dark-green, halogen-free plastic package suitable for surface-mounted design I AEC-Q101 qualiﬁed 1.3.
