SAA5281, SAA Integrated Video input processor and Teletext decoder IVT1.8

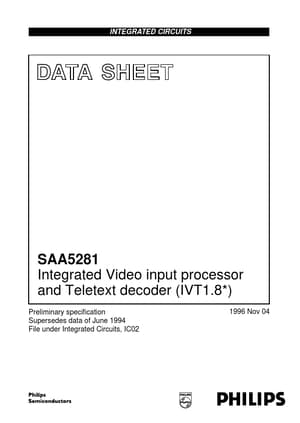

INTEGRATED CIRCUITS DATA SHEET SAA5281 Integrated Video input processor and Teletext decoder (IVT1.8 *) Preliminary speciﬁcation Supersedes data .
SAA5281 The IVT1. is a single-chip Teletext decoder IC for decoding 625-line based World System Teletext transmissions.

SAA-528.pdf

SAA5281 Datasheet Preview — This datasheet PDF includes multiple part numbers: SAA5281, SAA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SAA5281, SAA

Manufacturer:

NXP ↗

File Size:

1.16 MB

Description:

Integrated Video input processor and Teletext decoder IVT1.8

Note:

This datasheet PDF includes multiple part numbers: SAA5281, SAA.
Please refer to the document for exact specifications by model.

Features

* Complete Teletext and VPS decoding in a single package
* Built-in 8K × 8 memory for up to 8 page storage
* Enhanced mode allows 7 Fastext pages and 8 pages of TOP to be captured
* Ability to request only subtitle pages
* Acquisition and decoding of VPS data

Applications

* QUICK REFERENCE DATA SYMBOL VDD IDD Vsync Vvid(p-p) fxtal Tamb supply voltage supply current sync voltage amplitude video input voltage amplitude (peak-to-peak value) crystal frequency operating ambient temperature PARAMETER 4.5
* 0.1 0.7
* 20 MIN. 5.0 75 0.3 1.0 27
