SAA7212

Integrated MPEG AVG decoder

SAA7212 Features

* General features

* Single external Synchronous DRAM organized as 1 M × 16 interfacing at 81 MHz. Due to efficient memory use in MPEG decoding, more than 1 Mbit available for graphics

* Fast 16-bit data + 8-bit address interface with external controller on 27 MHz. Sustained data rate

SAA7212 General Description

SAA7212 The SAA7212 is an MPEG2 source decoder which combines audio decoding and video decoding. Additionally to these basic MPEG functions it also provides means for enhanced graphics and/or on-screen display (OSD). Due to an optimized architecture for audio and video decoding, maximum capacity i.

SAA7212 Datasheet (93.74 KB)

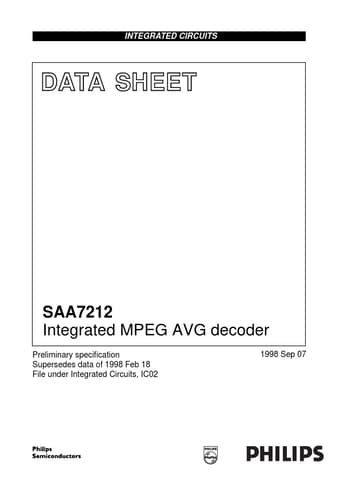

Preview of SAA7212 PDF

Datasheet Details

Part number:

SAA7212

Manufacturer:

NXP ↗

File Size:

93.74 KB

Description:

Integrated mpeg avg decoder.
INTEGRATED CIRCUITS DATA SHEET SAA7212 Integrated MPEG AVG decoder Preliminary specification Supersedes data of 1998 Feb 18 File under Integrated Cir.
