SAA7214

Transport MPEG2 source decoder

SAA7214 Features

* General features

* Conditional access descrambling DVB-compliant

* Stream demultiplexing (TS, PES, program and proprietary streams)

* Internal PR3001 32-bit RISC processor running at 40.5 MHz

* Low-power sleep modes supported across the chip

* Comprehensive dr

SAA7214 General Description

SAA7214 system overview The device is part of a comprehensive source decoding kit which contains all the hardware and software required to receive and decode MPEG2 transport streams, including descrambling, demultiplexing. In addition, it includes a MIPS PR3001 RISC CPU core and several peripheral i.

SAA7214 Datasheet (72.28 KB)

Preview of SAA7214 PDF

Datasheet Details

Part number:

SAA7214

Manufacturer:

NXP ↗

File Size:

72.28 KB

Description:

Transport mpeg2 source decoder.

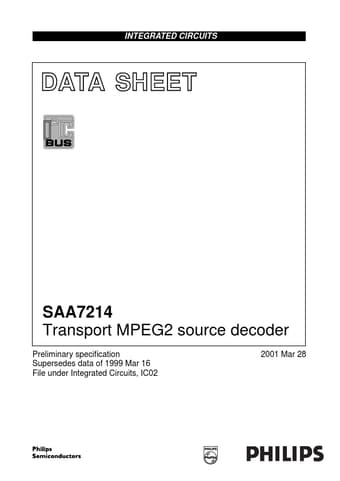

INTEGRATED CIRCUITS DATA SHEET SAA7214 Transport MPEG2 source decoder Preliminary specification Supersedes data of 1999 Mar 16 File under Integrated .
