SAA7201

Integrated MPEG2 AVG decoder

SAA7201 Features

* General

* Uses single external Synchronous DRAM (SDRAM) organized as 1M × 16 interfacing at 81 MHz; compatible with the SDRAM ‘lite’ or ‘PC’

* Fast external CPU interface; 16-bit data + 8-bit address

* Dedicated input for audio and video data in PES or ES format; data input r

SAA7201 General Description

The SAA7201 is an MPEG2 decoder which combines audio decoding and video decoding. Additionally to these basic MPEG functions it also provides means for enhanced graphics and/or on-screen display. QUICK REFERENCE DATA SYMBOL VDD VCC IDD(tot) fCLK ∆fCLK PARAMETER functional supply voltage pad supply v.

SAA7201 Datasheet (292.16 KB)

Preview of SAA7201 PDF

Datasheet Details

Part number:

SAA7201

Manufacturer:

NXP ↗

File Size:

292.16 KB

Description:

Integrated mpeg2 avg decoder.

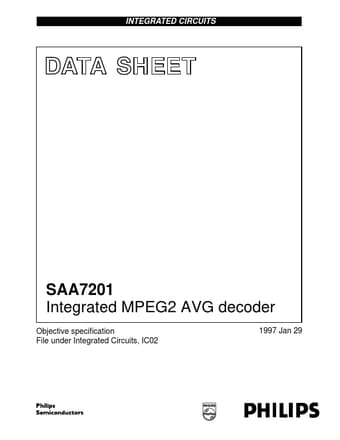

INTEGRATED CIRCUITS DATA SHEET SAA7201 Integrated MPEG2 AVG decoder Objective specification File under Integrated Circuits, IC02 1997 Jan 29 Philips.
