SAA7207H

Reed Solomon decoder IC

SAA7207H Features

* (204, 188 and 17) Digital Video Broadcasting (DVB) compliant Reed Solomon (RS) codes

* Automatic synchronization of bytes, blocks and frame

* Convolutional de-interleaving (I = 12)

* Energy dispersal de-randomizing

* Contained in a 44-pin quad flat package

SAA7207H General Description

plastic quad flat package; 44 leads (lead length 1.3 mm); body 10 × 10 × 1.75 mm VERSION SOT307-2 1996 Jul 17 2 Philips Semiconductors Product specification Reed Solomon decoder IC BLOCK DIAGRAM SAA7207H handbook, full pagewidth CLK 38 DATA1 DATA0 VALI TRST TCK TMS TDI TDO TC0 TC1 35 36 34 3.

SAA7207H Datasheet (98.14 KB)

Preview of SAA7207H PDF

Datasheet Details

Part number:

SAA7207H

Manufacturer:

NXP ↗

File Size:

98.14 KB

Description:

Reed solomon decoder ic.

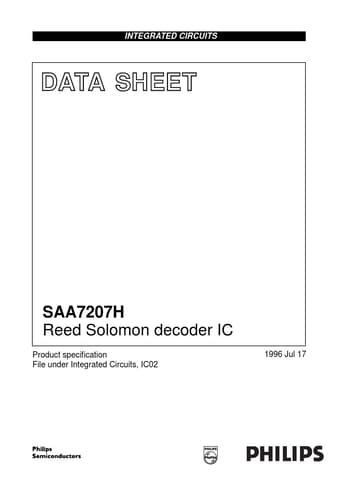

INTEGRATED CIRCUITS DATA SHEET SAA7207H Reed Solomon decoder IC Product specification File under Integrated Circuits, IC02 1996 Jul 17 Philips Semic.
