TDA5051

Home automation modem

TDA5051 Features

* Full digital carrier generation and shaping

* Modulation/demodulation frequency set by clock adjustment, from microcontroller or on-chip oscillator

* High clock rate of 6 bits D/A (Digital-to-Analog) converter for rejection of aliasing components

* Fully integrated

TDA5051 General Description

The TDA5051 is a modem IC, specifically dedicated to ASK transmission by means of the home power supply network, at 600 or 1200 baud data rate. It operates from a single 5 V supply. MAX. 5.25 38 68 25 70 148.5 9.504 122 122

*

* 1200 UNIT V mA mA mA °C kHz MHz dBµV dBµV dB Ω bits/s .

TDA5051 Datasheet (147.41 KB)

Preview of TDA5051 PDF

Datasheet Details

Part number:

TDA5051

Manufacturer:

NXP ↗

File Size:

147.41 KB

Description:

Home automation modem.

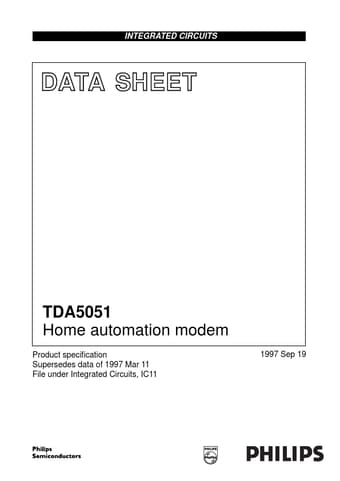

INTEGRATED CIRCUITS DATA SHEET TDA5051 Home automation modem Product specification Supersedes data of 1997 Mar 11 File under Integrated Circuits, IC1.
