TDA5051A - Home automation modem

TDA5051A Description

TDA5051A Home automation modem Rev.5 * 13 January 2011 Product data sheet 1.General .
The TDA5051A is a modem IC, specifically dedicated to ASK transmission by means of the home power supply network, at 600 baud or 1200 baud data rate.

TDA5051A Features

* Full digital carrier generation and shaping
* Modulation/demodulation frequency set by clock adjustment, from microcontroller or on-chip oscillator
* High clock rate of 6-bit D/A (Digital to Analog) converter for rejection of aliasing components
* Fully integrated o

TDA5051A Applications

* SO16 plastic package 3. Applications
* Home appliance control (air conditioning, shutters, lighting, alarms and so on)
* Energy/heating control
* Amplitude Shift Keying (ASK) data transmission using the home power network NXP Semiconductors TDA5051A Home automatio

📥 Download Datasheet

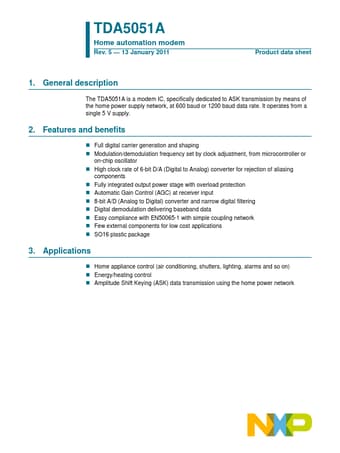

Preview of TDA5051A PDF
datasheet Preview Page 2 datasheet Preview Page 3
