TDA8703

8-bit high-speed analog-to-digital converter

TDA8703 Features

* 8-bit resolution

* Sampling rate up to 40 MHz

* High signal-to-noise ratio over a large analog input frequency range (7.1 effective bits at 4.43 MHz full-scale input)

* Binary or two's complement 3-state TTL outputs

* Overflow/underflow 3-state TTL output

TDA8703 General Description

plastic dual in-line package; 24 leads (600 mil) plastic small outline package; 24 leads; body width 7.5 mm APPLICATIONS TDA8703

* General purpose high-speed analog-to-digital conversion

* Digital TV, IDTV

* Subscriber TV decoder

* Satellite TV decoders

* Di.

TDA8703 Datasheet (141.71 KB)

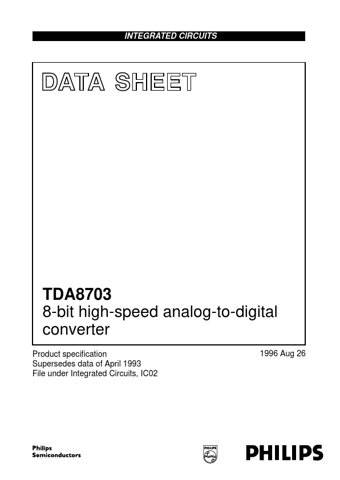

Preview of TDA8703 PDF

Datasheet Details

Part number:

TDA8703

Manufacturer:

NXP ↗

File Size:

141.71 KB

Description:

8-bit high-speed analog-to-digital converter.
INTEGRATED CIRCUITS DATA SHEET TDA8703 8-bit high-speed analog-to-digital converter Product specification Supersedes data of April 1993 File under In.
