TDA8706

6-bit analog-to-digital converter with multiplexer and clamp

TDA8706 Features

* 6-bit resolution

* Binary 3-state TTL outputs

* TTL compatible digital inputs

* 3 multiplexed video inputs

* Luminance and colour difference clamps

* Internal reference

* 300 mW power dissipation

* 20-pin plastic package. APPLICATIONS

TDA8706 General Description

GENERAL DESCRIPTION TDA8706 The TDA8706 is a monolithic bipolar 6-bit Analog-to-Digital Converter (ADC) with a 3 analog input multiplexer and a clamp. All digital inputs and outputs are TTL compatible. Regulator with good temperature compensation. The TDA8706 is a ‘like-flash’ converter which pro.

TDA8706 Datasheet (76.12 KB)

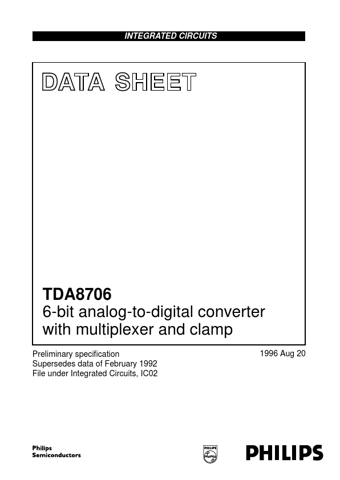

Preview of TDA8706 PDF

Datasheet Details

Part number:

TDA8706

Manufacturer:

NXP ↗

File Size:

76.12 KB

Description:

6-bit analog-to-digital converter with multiplexer and clamp.
INTEGRATED CIRCUITS DATA SHEET TDA8706 6-bit analog-to-digital converter with multiplexer and clamp Preliminary specification Supersedes data of Febr.
