* 2 times 6-bit resolution
* Sampling rate up to 40 MHz
* High signal-to-noise ratio over a large analog input frequency range (5.8 effective bits at 10 MHz full-scale input at fclk = 40 MHz
* TTL output
* Two separated inputs (AC-coupling)
* TTL compa
TDA8705
117.56 KB
6-bit high-speed dual analog-to-digital converter adc.

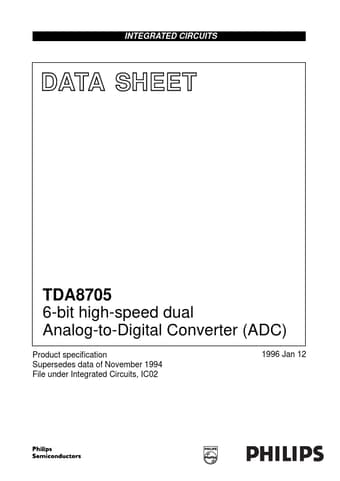

INTEGRATED CIRCUITS
DATA SHEET
TDA8705 6-bit high-speed dual Analog-to-Digital Converter (ADC)
Product specification Supersedes data of November 1994.
