TEA1093T - Hands-free

NXP

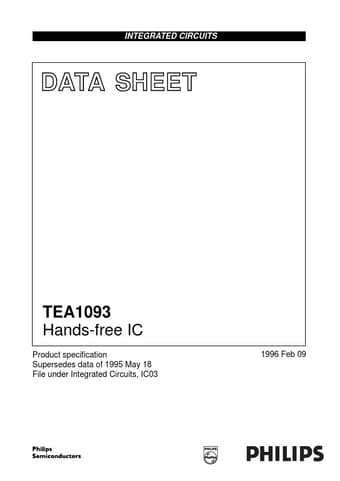

TEA1093T Datasheet Preview — Preview of TEA1093T PDF

Datasheet Details

Part number	TEA1093T
Manufacturer	NXP ↗
File Size	208.37 KB
Description	Hands-free
Datasheet	TEA1093T_PhilipsSemiconductors.pdf

TEA1093T Product details

Description

plastic dual in-line package; 28 leads (600 mil) plastic small outline package; 28 leads; body width 7.5 mm GENERAL DESCRIPTION APPLICATIONS Line-powered telephone sets with hands-free/listening-in functions.

Features

Line powered supply with:.
adjustable stabilized supply voltage.
power down function.
Microphone channel with:.
externally adjustable gain.
microphone mute function.
Loudspeaker channel with:.
externally adjustable gain.
dynamic limiter to prevent distortion.
rail-to-rail output stages for single-ended or bridge-tied load drive.
logarithmic volume control via linear potentiometer.
loudspe.
