NT5CC1024M4BN

4Gb DDR3 SDRAM B-Die

NT5CC1024M4BN Features

* and all of the control and address inputs are synchronized with a pair of externally supplied differential clocks. Inputs are latched at the cross point of differential clocks (CK rising and  falling). All I/Os are synchronized with a single ended DQS or differential DQS pair in a source synchrono

NT5CC1024M4BN General Description

The 4Gb Double-Data-Rate-3 (DDR3) DRAMs is a high-speed CMOS Double Data Rate32 SDRAM containing 4,294,967,296 bits. It is internally configured as an octal-bank DRAM. The 4Gb chip is organized as 128Mbit x 4 I/O x 8 bank , 64Mbit x 8 I/O x 8 banks and 32Mbit x16 I/O x 8 banks. These synchronous dev.

NT5CC1024M4BN Datasheet (2.64 MB)

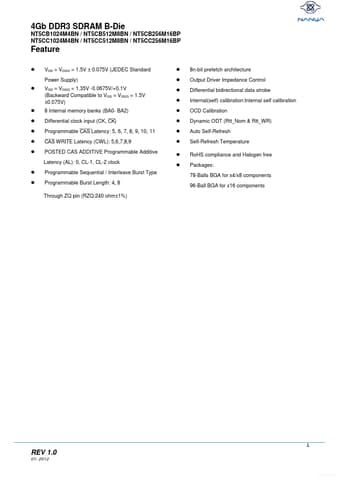

Preview of NT5CC1024M4BN PDF

Datasheet Details

Part number:

NT5CC1024M4BN

Manufacturer:

Nanya

File Size:

2.64 MB

Description:

4gb ddr3 sdram b-die.
