NT5CC128M8DN

1Gb DDR3 SDRAM

NT5CC128M8DN Features

* and all of the control and address inputs are synchronized with a pair of externally supplied differential clocks. Inputs are latched at the cross point of differential clocks (CK rising and falling). All I/Os are synchronized with a single ended DQS or differential DQS pair in a source synchrono

NT5CC128M8DN General Description

The 1Gb Double-Data-Rate-3 (DDR3/L) B-die DRAMs is double data rate architecture to achieve high-speed operation. It is internally configured as an eight bank DRAM. The 1Gb chip is organized as 16Mbit x 8 I/Os x 8 banks or 8Mbit x 16 I/Os x 8 bank devices. These synchronous devices achieve high spee.

NT5CC128M8DN Datasheet (2.62 MB)

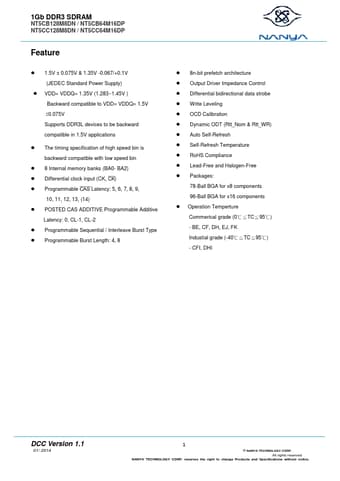

Preview of NT5CC128M8DN PDF

Datasheet Details

Part number:

NT5CC128M8DN

Manufacturer:

Nanya

File Size:

2.62 MB

Description:

1gb ddr3 sdram.
