54165 Datasheet - National Semiconductor

54165 8-Bit Parallel-to-Serial Converter

The ’165 is an 8-bit parallel load or serial-in register with complementary outputs available from the last stage Parallel inputting occurs asynchronously when the Parallel Load (PL) input is LOW With PL HIGH serial shifting occurs on the rising edge of the clock new data enters via the Serial Data .

54165_NationalSemiconductor.pdf

Preview of 54165 PDF

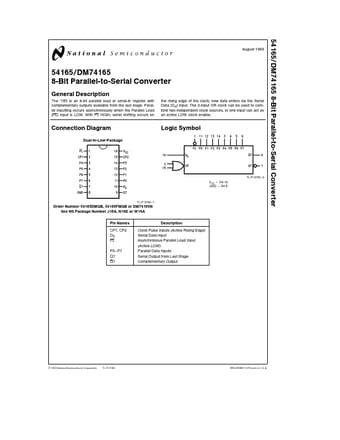

54165 Datasheet Preview Page 2 54165 Datasheet Preview Page 3

Datasheet Details

Part number:

54165

Manufacturer:

National Semiconductor

File Size:

136.59 KB

Description:

8-bit parallel-to-serial converter.
