54AC08 Datasheet, Gate, National Semiconductor

54AC08 Features

  • Gate n n n n ICC reduced by 50% Outputs source/sink 24 mA Standard Microcircuit Drawing (SMD) 5962-87615 For Military 54ACT08 device, see 54ACTQ08 Logic Symbols IEEE/IEC DS100260-1 Connec

PDF File Details

Part number:

54AC08

Manufacturer:

National Semiconductor

File Size:

135.61kb

Download:

📄 Datasheet

Description:

Quad 2-input and gate. The ’AC08 contains four, 2-input AND gates. Features n n n n ICC reduced by 50% Outputs source/sink 24 mA Standard Microcircuit Draw

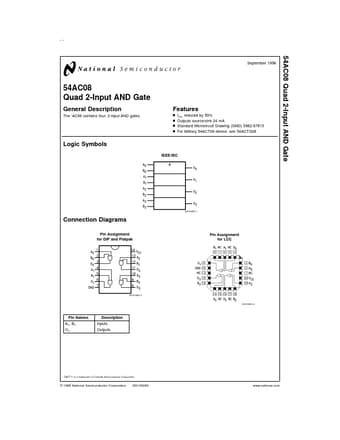

Datasheet Preview: 54AC08 📥 Download PDF (135.61kb)
Page 2 of 54AC08 Page 3 of 54AC08
