54ACT825 - 8-Bit D Flip-Flop

Name: 54ACT825
SKU: 54ACT825-628342

National Semiconductor

The 54ACT825 by National Semiconductor is a 8-Bit D Flip-Flop. Below is the official datasheet preview.

Datasheet Details

Part number	54ACT825
Manufacturer	National Semiconductor
File Size	186.10 KB
Description	8-Bit D Flip-Flop
Datasheet	54ACT825_NationalSemiconductor.pdf

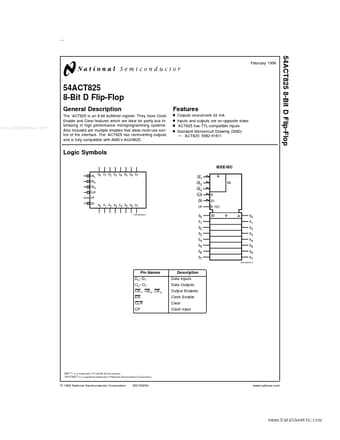

Additional preview pages of the 54ACT825 datasheet.

www.DataSheet4U.com The ’ACT825 is an 8-bit buffered register.They have Clock Enable and Clear

which are ideal for parity bus interfacing in high performance microprogramming systems. Also included are multiple enables that allow multi-use control of the interface. The ’ACT825 has noninverting outputs and is fully compatible with AMD’s Am29825. Features n n n n Outputs source/sink 24 mA Inputs and outputs are on opposite sides ’ACT825 has TTL-compatible inputs Standard Microcircuit Drawing (SMD).
’ACT825: 5962-91611 Logic Symbols IEEE/IEC DS100254-1 DS100254-3 Pin Names D0.
