54FCT245 Datasheet, Transceiver, National Semiconductor

54FCT245 Features

• Transceiver n TTL input and output level compatible n A and B output sink capability of 48 mA, source capability of 12 mA n CMOS power consumption n Standard Microcircuit Drawing (SMD) 5962-8762901

PDF File Details

Part number:

54FCT245

Manufacturer:

National Semiconductor

File Size:

155.68kb

Download:

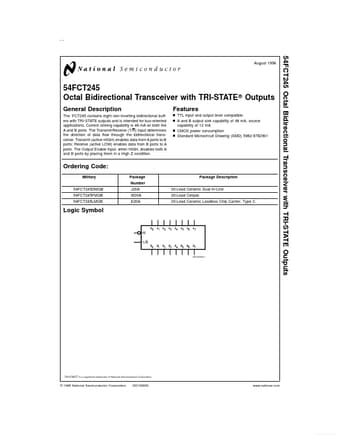

📄 Datasheet

Description:

Octal bidirectional transceiver. The ’FCT245 contains eight non-inverting bidirectional buffers with TRI-STATE outputs and is intended for bus-oriented applications.

54FCT245 Application

• Applications Current sinking capability is 48 mA on both the A and B ports. The Transmit/Receive (T/R) input determines the direction of data flow
