54LVX3383

10-Bit Low Power Bus-Exchange Switch

54LVX3383 Datasheet (111.96 KB)

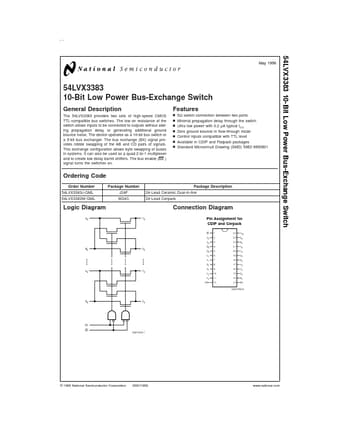

Preview of 54LVX3383 PDF Datasheet

Datasheet Details

Part number:

54LVX3383

Manufacturer:

National Semiconductor

File Size:

111.96 KB

Description:

10-bit low power bus-exchange switch

54LVX3383 Features

* n n n n n n n 5Ω switch connection between two ports Minimal propagation delay through the switch Ultra low power with 0.2 µA typical ICC Zero ground bounce in flow-through mode Control inputs compatible with TTL level Available in CDIP and Flatpack packages Standard Microcircuit Drawing (SMD) 5962-

54LVX3383 General Description

The 54LVX3383 provides two sets of high-speed CMOS TTL-compatible bus switches. The low on resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise. The device operates as a 10-bit bus switch or a 5-bit bus exchan.
