ADC12040 - 12-Bit/ 40 MSPS/ 340 mW A/D Converter

National Semiconductor

ADC12040 Datasheet Preview — Preview of ADC12040 PDF

Datasheet Details

Part number	ADC12040
Manufacturer	National Semiconductor ↗
File Size	519.16 KB
Description	12-Bit/ 40 MSPS/ 340 mW A/D Converter
Datasheet	ADC12040_NationalSemiconductor.pdf

ADC12040 Product details

Description

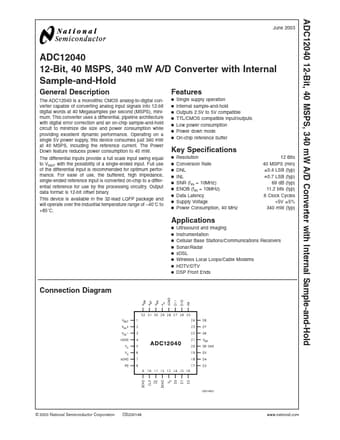

The ADC12040 is a monolithic CMOS analog-to-digital converter capable of converting analog input signals into 12-bit digital words at 40 Megasamples per second (MSPS), minimum.

Features

n n n n n n n Single supply operation Internal sample-and-hold Outputs 2.5V to 5V compatible TTL/CMOS compatible input/outputs Low power consumption Power down mode On-chip reference buffer Key Specifications n n n n n n n n n Resolution Conversion Rate DNL INL SNR (fIN = 10MHz) ENOB (fIN = 10MHz) Data Latency Supply Voltage Power Consumption, 40 MHz 12 Bits 40 MSPS (min) ± 0.4 LSB (typ) ± 0.7 LSB (typ) 69 dB (typ) 11.2 bits (typ) 6 Clock Cycles +5V ± 5% 340 mW (typ).
