ADC12020

12-Bit/ 20 MSPS/ 185 mW A/D Converter

ADC12020 Features

* n n n n n Internal sample-and-hold Outputs 2.5V to 5V compatible TTL/CMOS compatible input/outputs Power down mode On-chip reference buffer Key Specifications n n n n n n n n n Resolution Conversion Rate DNL INL SNR (fIN = 10.1 MHz) ENOB (fIN = 10.1 MHz) Data Latency Supply Voltage Power Consumptio

ADC12020 General Description

The ADC12020 is a monolithic CMOS analog-to-digital converter capable of converting analog input signals into 12-bit digital words at 20 Megasamples per second (MSPS), minimum. This converter uses a differential, pipeline architecture with digital error correction and an on-chip sample-and-hold circ.

ADC12020 Datasheet (621.25 KB)

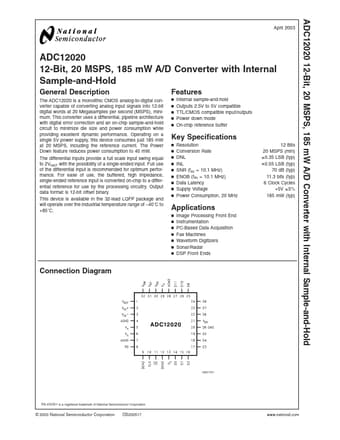

Preview of ADC12020 PDF

Datasheet Details

Part number:

ADC12020

Manufacturer:

National Semiconductor

File Size:

621.25 KB

Description:

12-bit/ 20 msps/ 185 mw a/d converter.
ADC12020 12-Bit, 20 MSPS, 185 mW A/D Converter with Internal Sample-and-Hold April 2003 ADC12020 12-Bit, 20 MSPS, 185 mW A/D Converter with Internal.
