ADC120 Datasheet, Converter, STMicroelectronics

ADC120 Features

  • Converter
  • 50 ksps to 1 Msps conversion rate
  • 8-to-1-channel input MUX
  • 3.3 V operating supply
  • Pure CMOS
  • Very low consumption
  • SPI, serial

PDF File Details

Part number:

ADC120

Manufacturer:

STMicroelectronics ↗

File Size:

489.67kb

Download:

📄 Datasheet

Description:

12-bit a/d converter. The ADC120 is a low-power, eight-channel pure CMOS 12-bit analog-to-digital converter specified for conversion from 50 ksps to 1 Msps

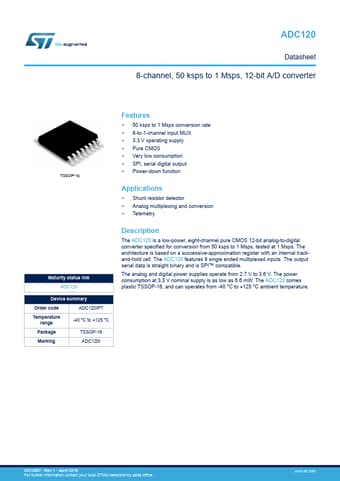

Datasheet Preview: ADC120 📥 Download PDF (489.67kb)
Page 2 of ADC120 Page 3 of ADC120

ADC120 Application

  • Applications
  • Shunt resistor detector
  • Analog multiplexing and conversion
  • Telemetry Description The ADC120 is a low-powe
