ADC12034, ADC, Self-Calibrating 12-Bit Plus Sign Serial I/O A/D Converters

ADC12H030/ADC12H032/ADC12H034/ADC12H038, ADC12030/ADC12032/ADC12034/ADC12038 Self-Calibrating 12-Bit Plus Sign Serial I/O A/D Converters with MUX and .
The ADC12030, and ADC12H030 families are 12-bit plus sign successive approximation A/D converters with serial I/O and configurable input multiplexers.

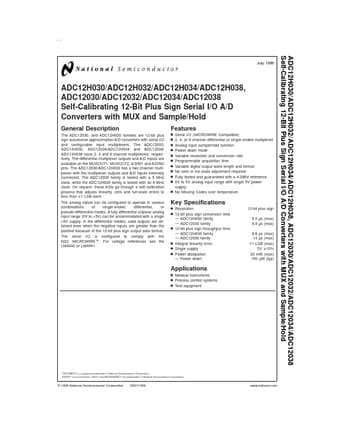

datasheet Preview Page 1 from Datasheet4u.com

ADC-120.pdf

ADC12034 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADC12034, ADC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADC12034, ADC

Manufacturer:

National Semiconductor

File Size:

1.01 MB

Description:

Self-Calibrating 12-Bit Plus Sign Serial I/O A/D Converters

Note:

This datasheet PDF includes multiple part numbers: ADC12034, ADC.
Please refer to the document for exact specifications by model.

Features

* Serial I/O (MICROWIRE Compatible) 2, 4, or 8 channel differential or single-ended multiplexer Analog input sample/hold function Power down mode Variable resolution and conversion rate Programmable acquisition time Variable digital output word length and format No zero or full scale adjustment requir

Applications

* n Medical instruments n Process control systems n Test equipment TRI-STATE ® is a registered trademark of National Semiconductor Corporation. COPS™ microcontrollers, HPC™ and MICROWIRE™ are trademarks of National Semiconductor Corporation. © 1999 National Semiconductor Corporation DS011354 www. n
