CD4042BM - Quad Clocked D-Latch

Product Overview

National Semiconductor

Datasheet Details

Part number	CD4042BM
Manufacturer	National Semiconductor
File Size	124.28 KB
Description	Quad Clocked D-Latch
Datasheet	CD4042BM Datasheet

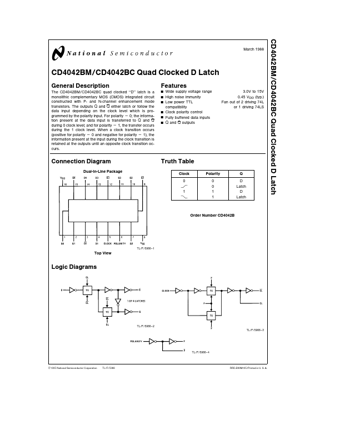

Additional preview pages of the CD4042BM datasheet.

Product details

Description

The CD4042BM CD4042BC quad clocked ‘‘D’’ latch is a monolithic complementary MOS (CMOS) integrated circuit constructed with P- and N-channel enhancement mode transistors The outputs Q and Q either latch or follow the data input depending on the clock level which is programmed by the polarity input For polarity e 0 the information present at the data input is transferred to Q and Q during 0 clock level and for polarity e 1 the transfer occurs during the 1 clock level When a clock transition occur

Features

Y Y Y Y Y Y Wide supply voltage range High noise immunity Low power TTL compatibility Clock polarity control Fully buffered data inputs Q and Q outputs 3 0V to 15V 0 45 VDD (typ ) Fan out of 2 driving 74L or 1 driving 74LS Connection Diagram Dual-In-Line Package Truth Table Clock 0 L 1 K Polarity 0 0 1 1 Q D Latch D Latch Order Number CD4042B TL F 5966.
1 Top View Logic Diagrams TL F 5966.
2 TL F 5966.
3 TL F 5966.
4 C1995 National Semiconductor Co.
