CD4512BM Datasheet - National Semiconductor

8-Channel Buffered Data Selector

CD4512BM Features

* Y Y Y Y Wide supply voltage range High noise immunity TRI-STATE output Low quiescent power dissipation 3 0V to 15V 0 45 VDD (typ ) Y 0 25 mW package (typ ) VCC e 5 0V Plug-in replacement for Motorola MC14512 Connection Diagram and Truth Table Dual-In-Line Package Order Number CD4512B TL F 599

CD4512BM General Description

The CD4512BM CD4512BC buffered 8-channel data selector is a complementary MOS (CMOS) circuit constructed with N- and P-channel enhancement mode transistors This data selector is primarily used as a digital signal multiplexer selecting 1 of 8 inputs and routing the signal to a TRISTATE output A high .

CD4512BM Datasheet (142.70 KB)

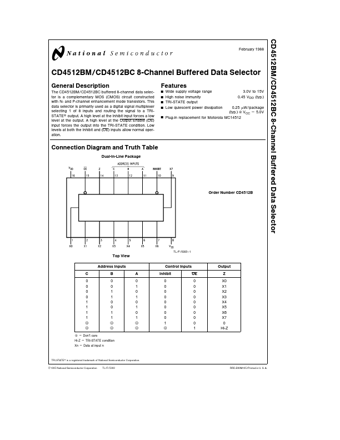

CD4512BM Datasheet Preview — Preview of CD4512BM PDF

Datasheet Details

Part number:

CD4512BM

Manufacturer:

National Semiconductor

File Size:

142.70 KB

Description:

8-channel buffered data selector.
