CLC002 Datasheet, Driver, National Semiconductor

CLC002 Features

  • Driver n SMPTE 292M, SMPTE 344M and SMPTE 259M compliant n Data rates to 1.485 Gbps n Differential input n 75Ω differential output n Selectable slew rate n Adjustable output amplitude n Single

PDF File Details

Part number:

CLC002

Manufacturer:

National Semiconductor

File Size:

467.92kb

Download:

📄 Datasheet

Description:

Smpte 292m / 259m serial digital cable driver. The CLC002 SMPTE 292M / 259M serial digital cable driver is a monolithic, high-speed cable driver designed for use in SMPTE 292M / 25

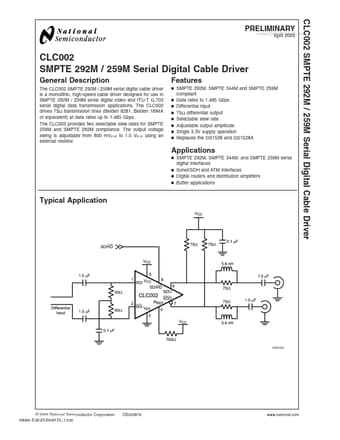

Datasheet Preview: CLC002 📥 Download PDF (467.92kb)
Page 2 of CLC002 Page 3 of CLC002

CLC002 Application

  • Applications The CLC002 drives 75Ω transmission lines (Belden 8281, Belden 1694A or equivalent) at data rates up to 1.485 Gbps. The CLC002 provides
