CLC005 - ITU-T G.703 Cable Driver with Adjustable Outputs

Datasheet Summary

Description

National’s Comlinear CLC005 is a monolithic, high-speed cable driver designed for the ITU-T G.703 serial digital data transmission standard.

The CLC005 drives 75Ω transmission lines (Belden 8281 or equivalent) at data rates from DC to over 622 Mbps.

Features

  • n n n n n No external pull-down resistors Adjustable output amplitude Differential input and output Low power dissipation Single +5V or.
  • 5.2V supply.

📥 Download Datasheet

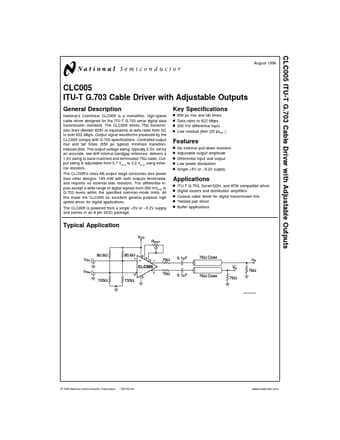

Datasheet preview – CLC005

Datasheet Details

Part number CLC005
Manufacturer National Semiconductor
File Size 333.45 KB
Description ITU-T G.703 Cable Driver with Adjustable Outputs
Datasheet download datasheet CLC005 Datasheet
Additional preview pages of the CLC005 datasheet.

📁 Similar Datasheet

  • CLC001 - CLC001 Serial Digital Cable Driver with Adjustable Outputs (Rev. B) (ETCTI)
  • CLC006 - CLC006 Serial Digital Cable Driver with Adjustable Outputs (Rev. G) (ETCTI)
  • CLC007 - CLC007 Serial Digital Cable Driver with Dual Complementary Outputs (Rev. E) (ETCTI)
  • CLC020 - CLC020 SMPTE 259M Digital Video Serializer with Integrated Cable Driver (Rev. E) (ETCTI)
  • CLC021 - CLC021 SMPTE 259M Digital Video Serializer with EDH Generation and Insertion (Rev. H) (ETCTI)
  • CLC-207 - Low Distortion Wideband Op Amp (Comlinear Corporation)
  • CLC1001 - Ultra-Low Noise Amplifier (Cadeka)
  • CLC1002 - Ultra-Low Noise Amplifier (Cadeka)
  • CLC1003 - RRIO Amplifier (Cadeka)
  • CLC1004 - (CLC1004 / CLC1014 / CLC3004) 750MHz Amplifiers (Cadeka)
Other Datasheets by National Semiconductor
  • CLC001 - Serial Digital Cable Driver with Adjustable Outputs
  • CLC002 - SMPTE 292M / 259M Serial Digital Cable Driver
  • CLC006 - Serial Digital Cable Driver with Adjustable Outputs
  • CLC007 - Serial Digital Cable Driver with Dual Complementary Outputs
  • CLC011 - Serial Digital Video Decoder
  • CLC012 - Adaptive Cable Equalizer for ITU-T G.703 Data Recovery
  • CLC014 - Adaptive Cable Equalizer for High-Speed Data Recovery
  • CLC016 - Data Retiming PLL with Automatic Rate Selection

Full PDF Text Transcription

Click to expand full text
CLC005 ITU-T G.703 Cable Driver with Adjustable Outputs August 1998 CLC005 ITU-T G.703 Cable Driver with Adjustable Outputs General Description National’s Comlinear CLC005 is a monolithic, high-speed cable driver designed for the ITU-T G.703 serial digital data transmission standard. The CLC005 drives 75Ω transmission lines (Belden 8281 or equivalent) at data rates from DC to over 622 Mbps. Output signal waveforms produced by the CLC005 comply with G.703 specifications. Controlled output rise and fall times (650 ps typical) minimize transitioninduced jitter. The output voltage swing, typically 2.0V, set by an accurate, low-drift internal bandgap reference, delivers a 1.0V swing to back-matched and terminated 75Ω cable. Output swing is adjustable from 0.7 Vp-p to 2.
